1 : For Sloped sheet roof-top

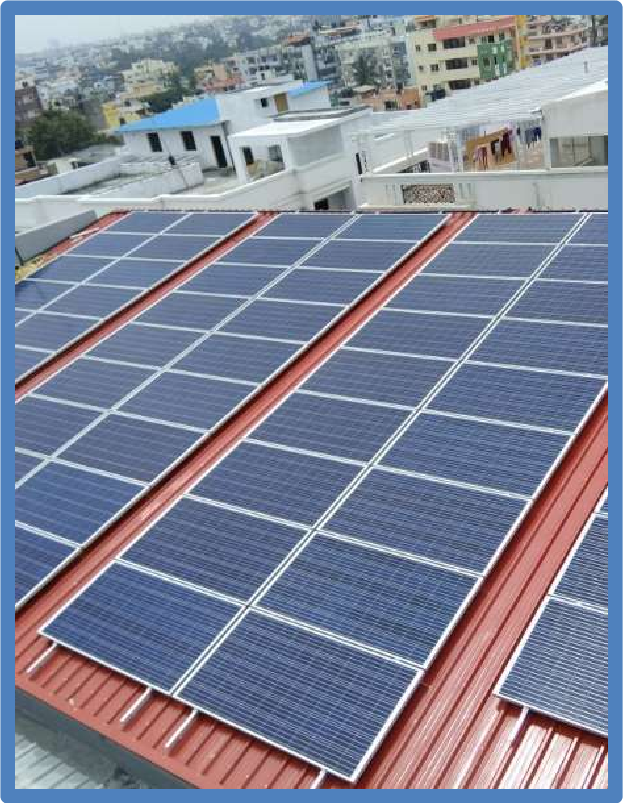

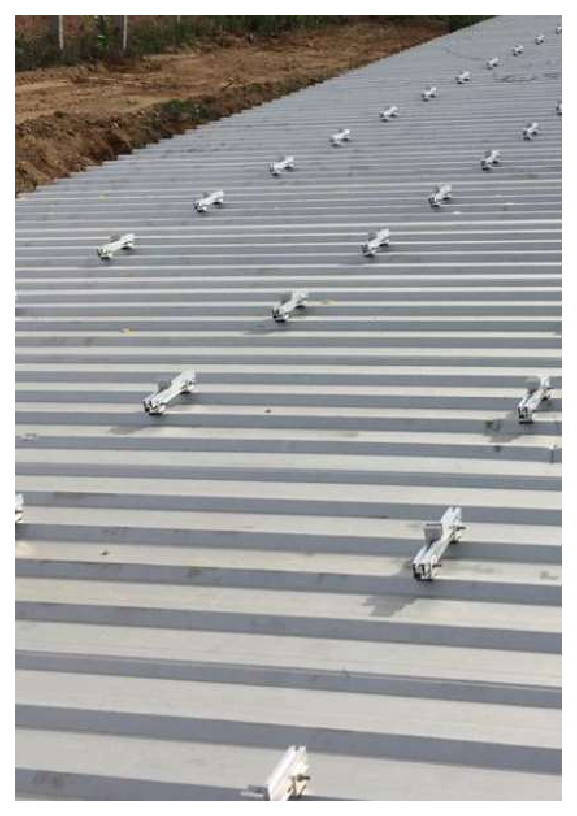

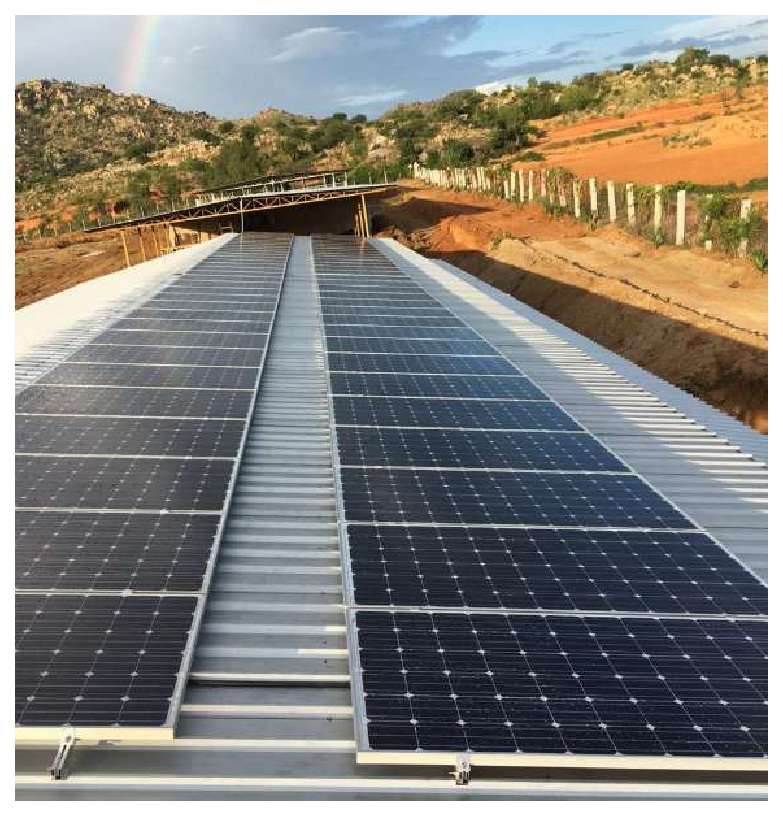

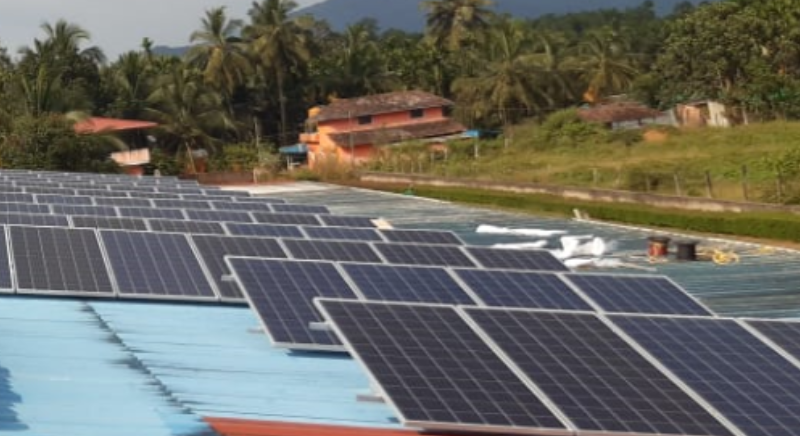

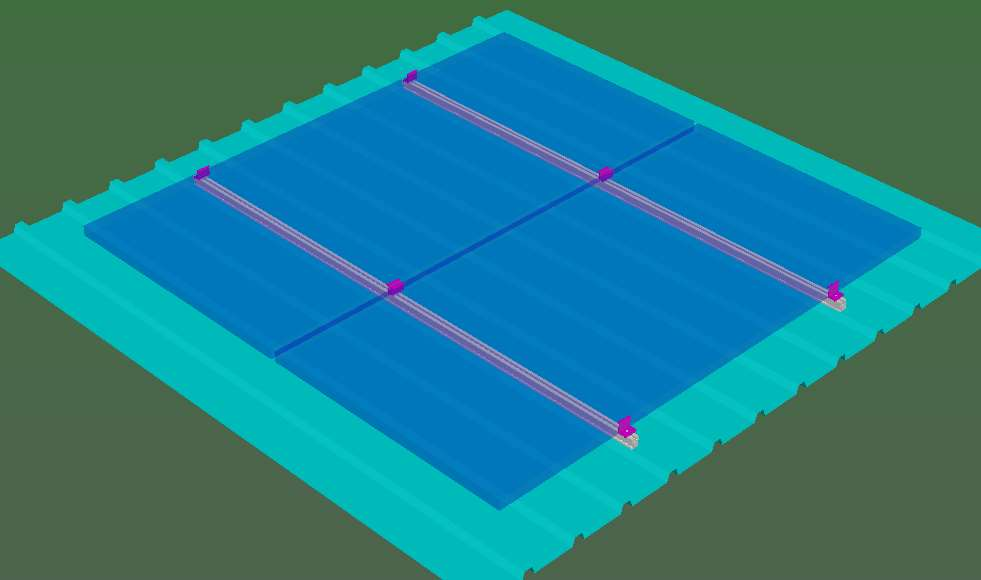

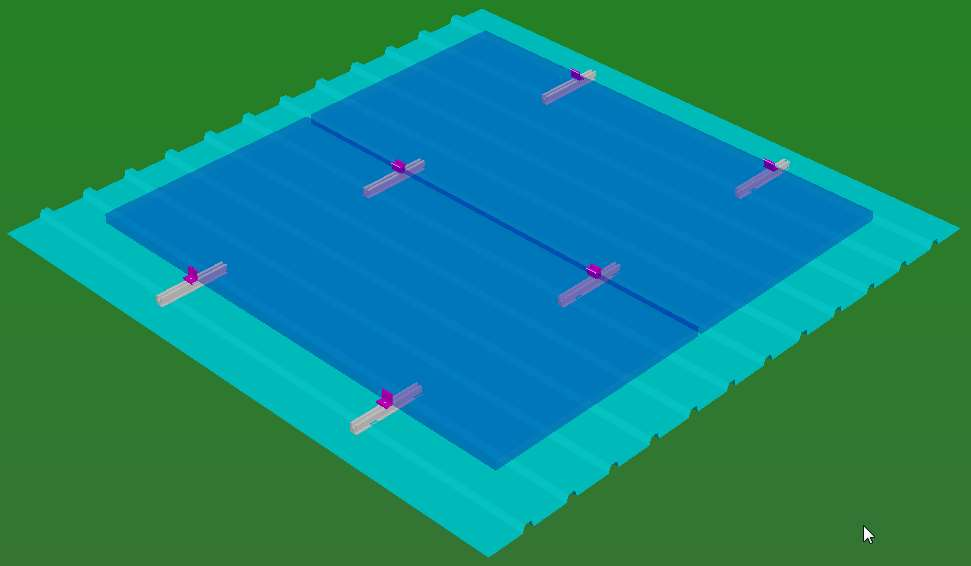

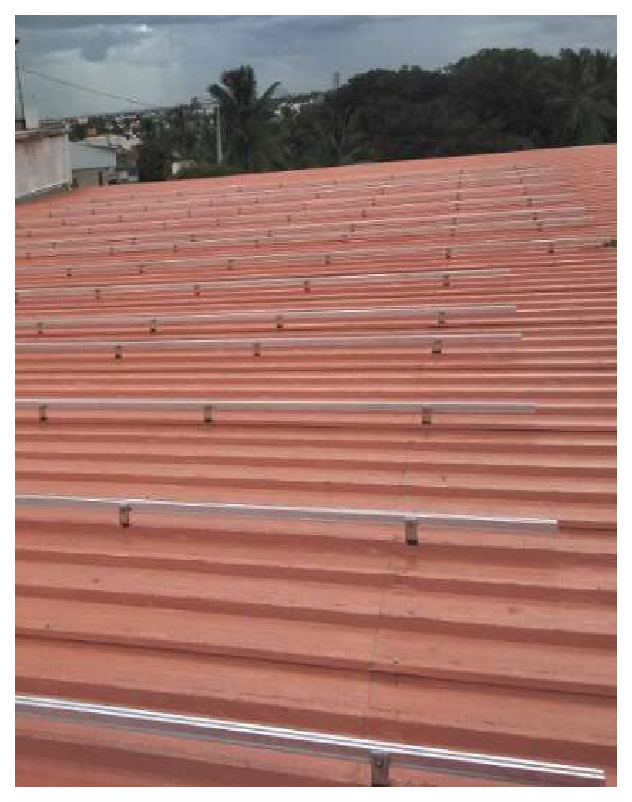

1a : Sheet roof, Long Rail system (Modules in Landscape)
Features:
- MMS anchored to the roof purlin using suitable Self Dril Screws.
- Module bottom clearance options of 50mm, 78mm & 110mm till sheet crown flat.
- EPDM gasket to ensure no leakage
- MOC of structure: Aluminium alloy, as per IS-733-Grade-63400-WP (6063T6)
- MOC of all assembly fasteners: Stainless Steel, Grade-SS-304.

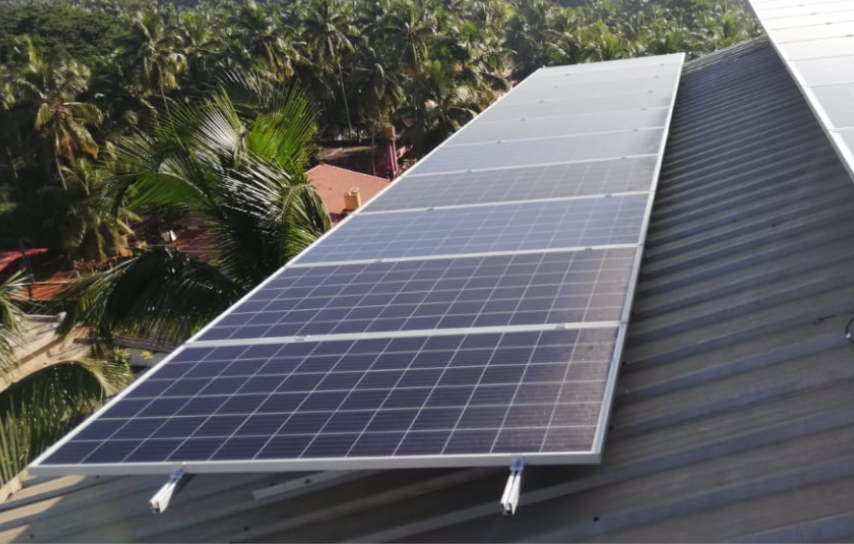

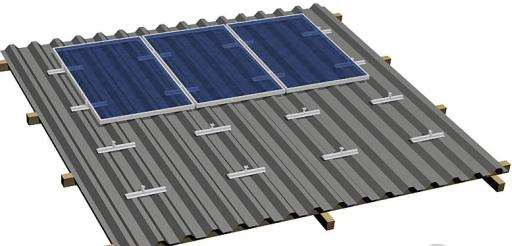

1b : Sheet roof, Short Rail system (Modules in Portrait)
Features:
- MMS anchored to the roof sheet over two crown flats.
- Module bottom clearance options is of 50mm & 78mm till sheet crown flat.
- EPDM gasket to ensure no leakage.
- MOC of structure: Aluminium alloy, as per IS-733-Grade-63400-WP (6063T6)
- MOC of all assembly fasteners: Stainless Steel, Grade-SS-304.

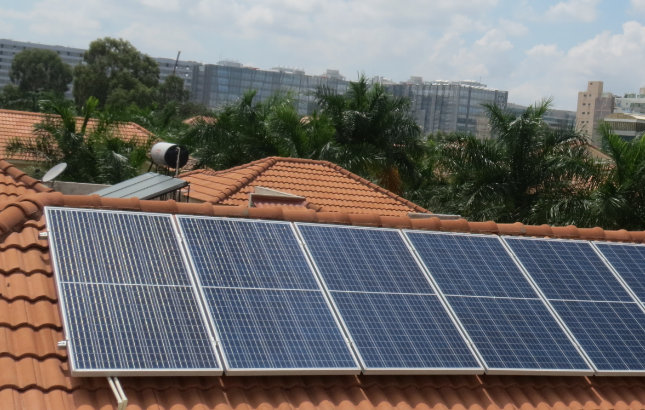

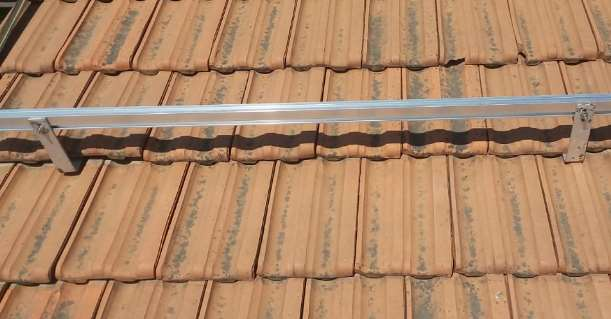

1C : Tiled Roof top MMS :
Features:
- MMS anchored to the Rafter of truss OR to RCC roof below the Tiles.
- Module bottom clearance is about 100mm.
- Modules can be mounted either in Landscape or Prtrait orientations.
- MOC of structure: Mounting brackets of MS+Galvanised and rails are of Aluminium alloy, as per IS-733-Grade-63400-WP (6063T6)
- MOC of all assembly fasteners: Stainless Steel, Grade-SS-304.

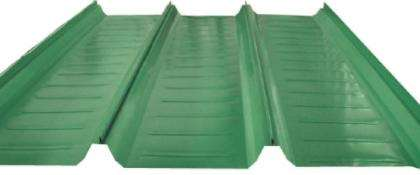

1D : Suitable solutions for all kinds of sheet profiles :

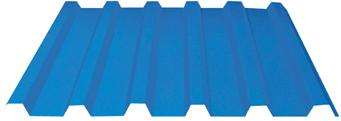

Sinusoidal Asbestos / Metal sheet
Trapezoidal sheet

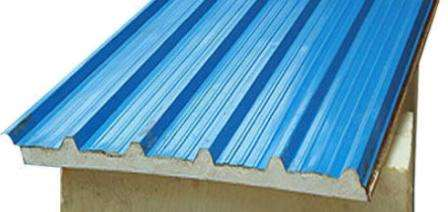

Insulated roof sheet
Standing seam double lock roof sheet
Simple standing seam clip-lock sheet
Simple standing seam clip-lock sheet
1E : Lateral Tilt, Over tilt & Reverse tilt MMS :
Features:
- MMS to accommodate other sheet roof slopes:
- South tilt MMS on E or W sloping sheet roof - Lateral Tilt
- Increased tilt MMS where South slope of sheet roof is low - Over tilt
- South tilt MMS on a North sloping sheet roof - Reverse tilt
- Modules are mounted in Prtrait orientations.
- MOC of structure: Aluminium alloy, as per IS-733-Grade-63400-WP (6063T6).
- MOC of all assembly fasteners: Stainless Steel, Grade-SS-304
2: For RCC flat roof-top

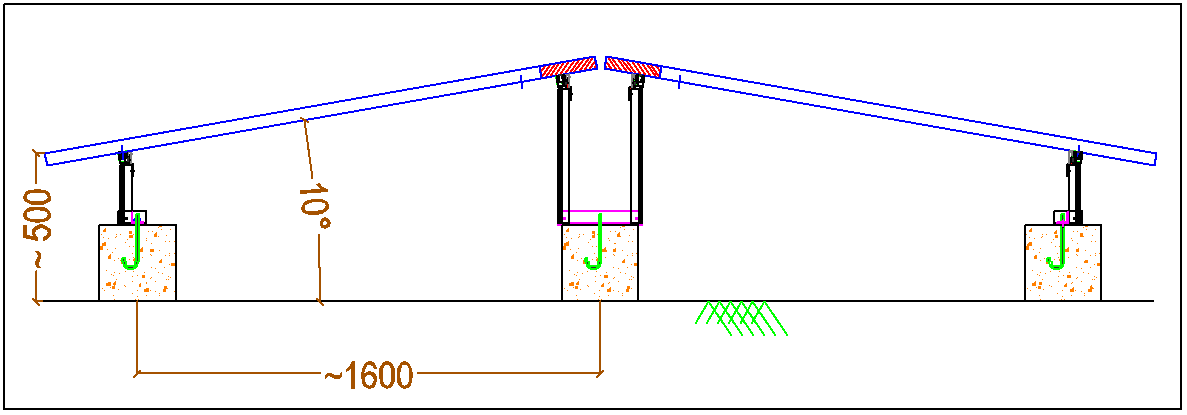

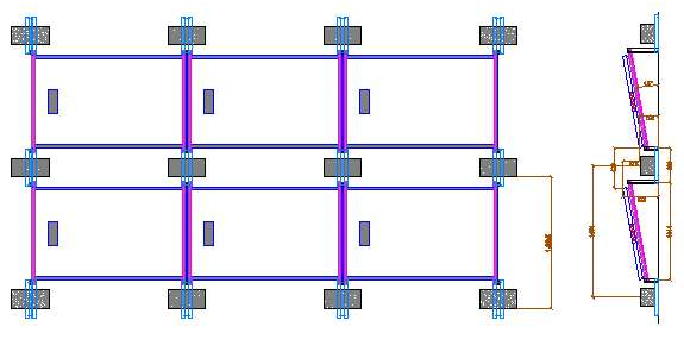

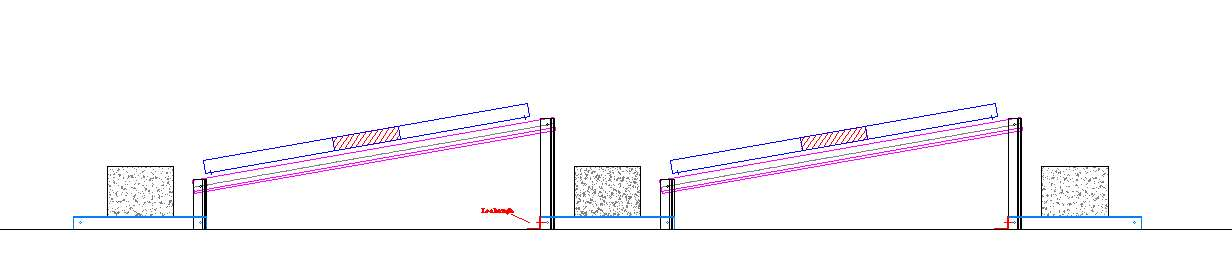

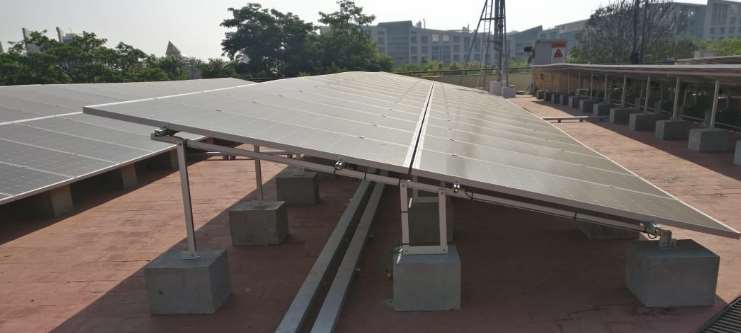

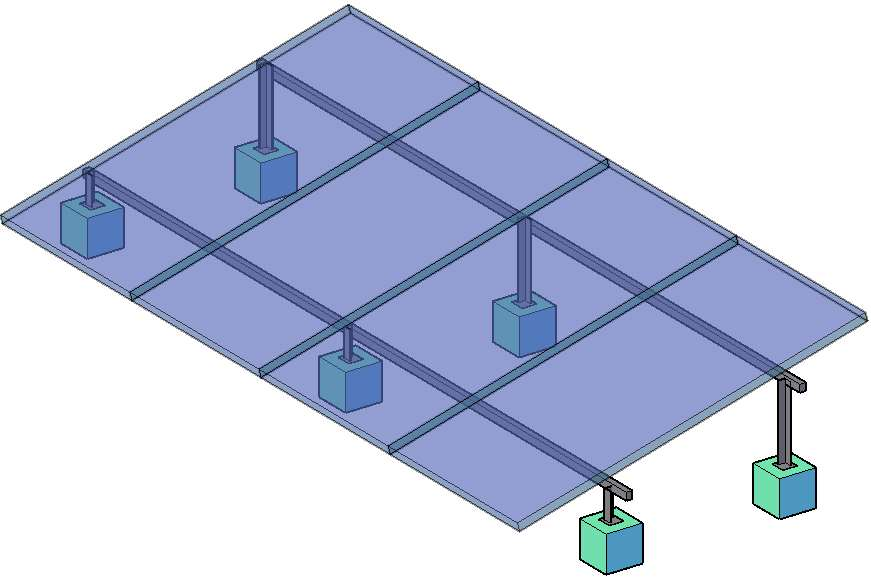

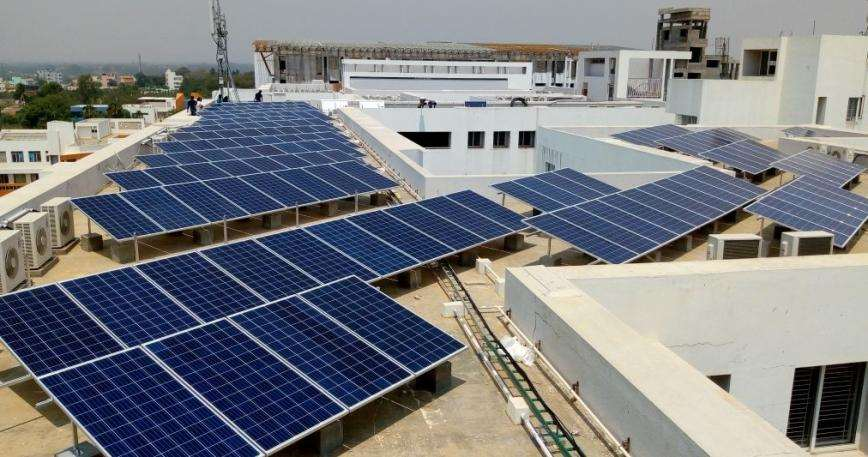

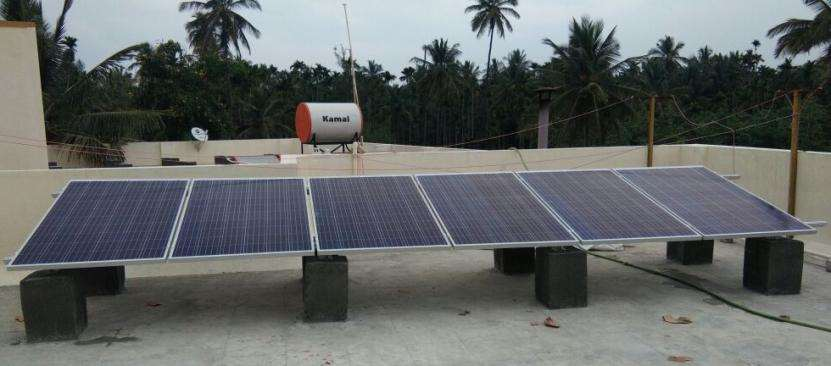

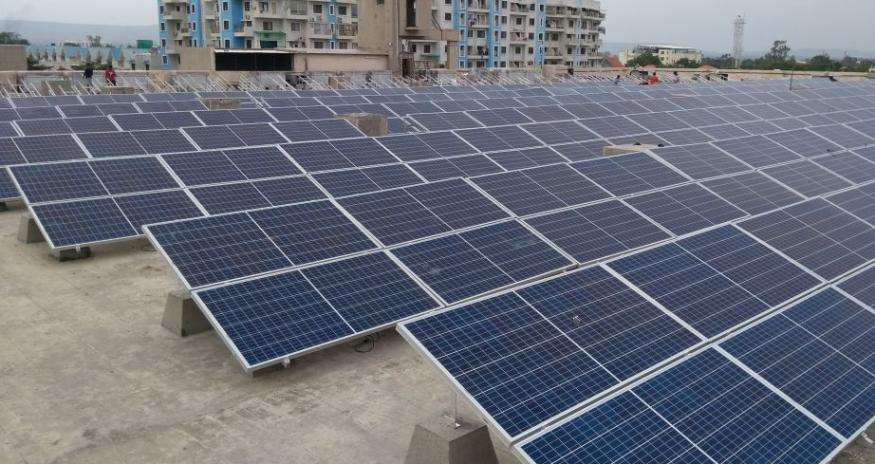

2a : Flat roof , 2MMS with pre-cast foundation (2L):
Features:
- MMS suitable for flat RCC roof with Modules in Landscape orientation.
- Module bottom clearance can be varied from 100mm to 500mm.
- Precast foundations or standard concrete blocks can be used as base foundation.
- MOC of structure: Aluminium alloy, as per IS-733-Grade-63400-WP (6063T6)
- MOC of all assembly fasteners: Stainless Steel, Grade-SS-304.

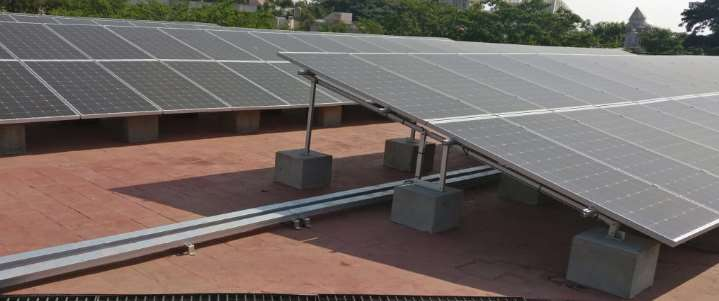

2b : Flat roof , MMS with modules in portrait (1p):
Features:
- MMS suitable for flat RCC roof with Modules in Portrait orientation.
- Module bottom clearance can be varied from 100mm to 750mm. (Higher clearance as custom design).
- Precast foundations or standard concrete blocks can be used as base foundation.
- MOC of structure: Aluminium alloy, as per IS-733-Grade-63400-WP (6063T6)
- MOC of all assembly fasteners: Stainless Steel, Grade-SS-304.

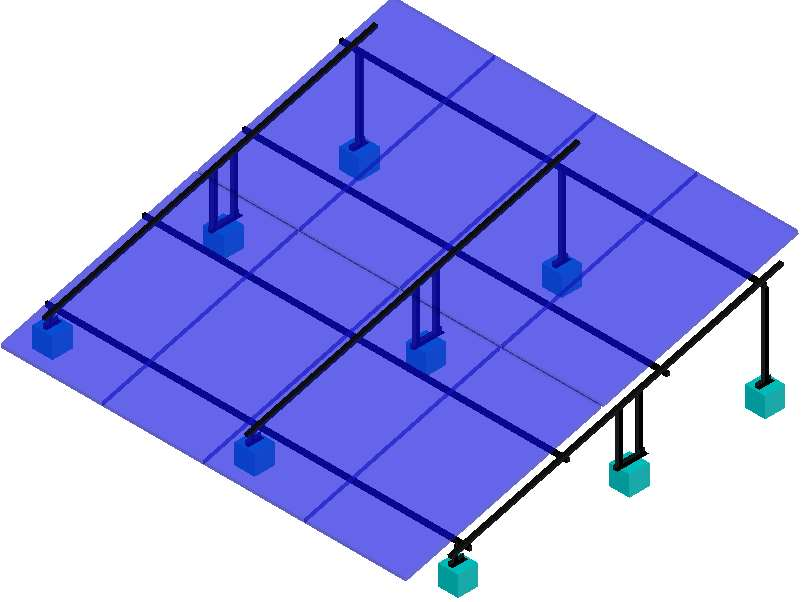

2c : Flat roof , MMS with 2 rows of modules in Portrait orientation (2P):

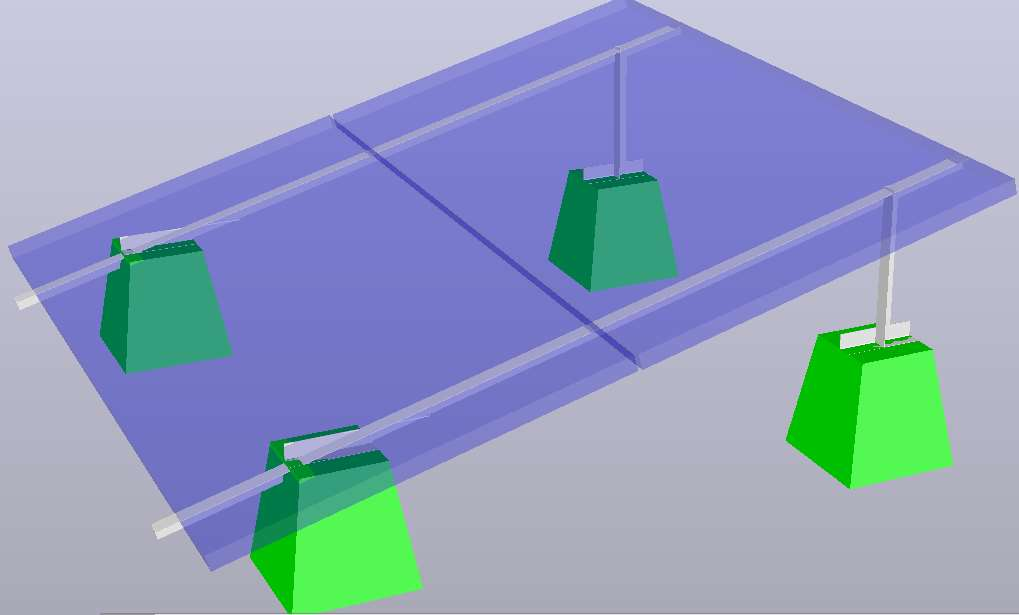

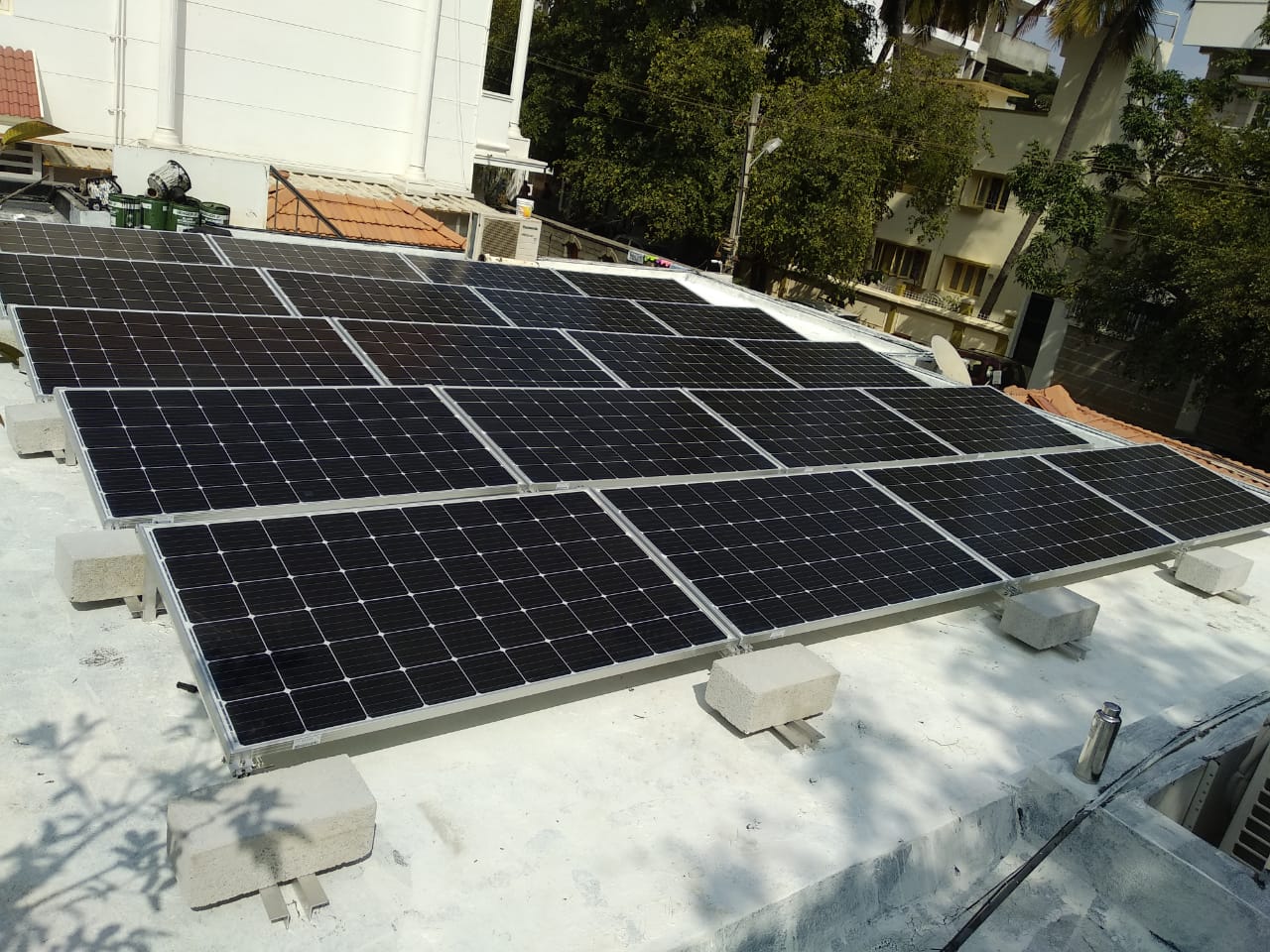

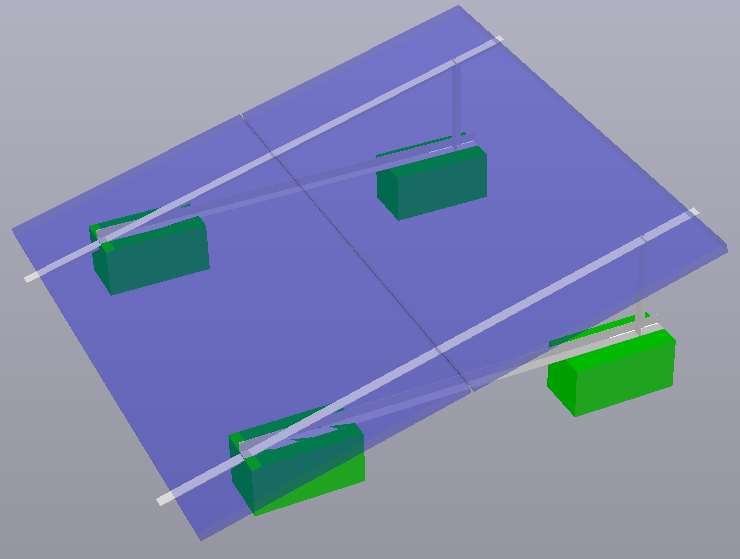

2d : Low Roof MMS on Flat RCC Roof-2d : (Ballast concrete block):
Features:
- MMS suitable for flat RCC roof with Modules in Landscape orientation.
- Module bottom clearance is 100mm.
- Standard concrete blocks can be used as ballast.
- MOC of structure: Aluminium alloy, as per IS-733-Grade-63400-WP (6063T6)
- MOC of all assembly fasteners: Stainless Steel, Grade-SS-304.
2e : E-W sloped MMS:
Features:
- MMS suitable for flat RCC roof with E-W Modules in Landscape orientation.
- Module bottom clearance can be designed as required upto 500mm.
- Standard concrete blocks can be used as foundation.
- MOC of structure: Aluminium alloy, as per IS-733-Grade-63400-WP (6063T6)
- MOC of all assembly fasteners: Stainless Steel, Grade-SS-304.

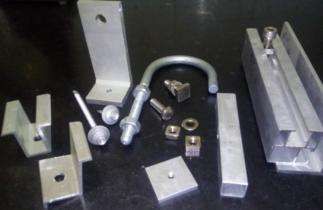

3: Module mounting accessories:

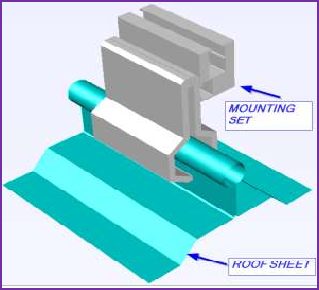

Sheet Roof Mounts and Clamps

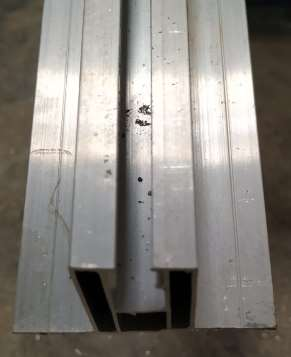

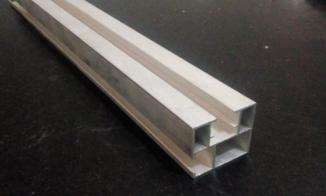

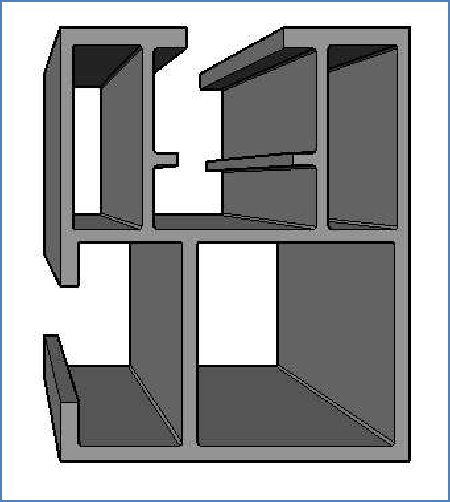

MOUNTING RAIL
MID CLAMP

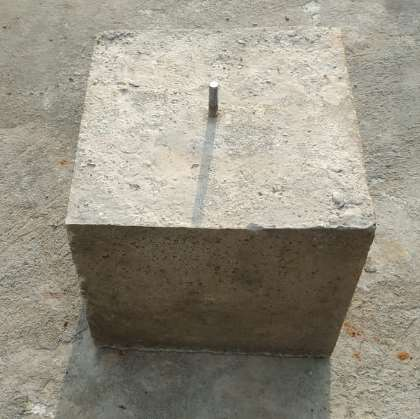

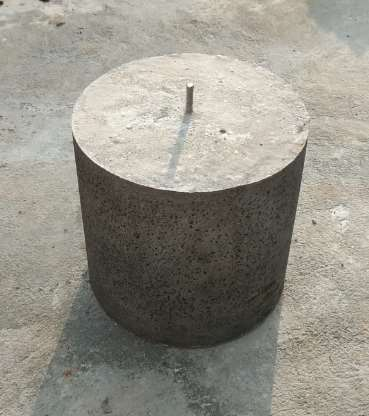

PRECAST FOUNDATION
MOUNTING FASTENERS

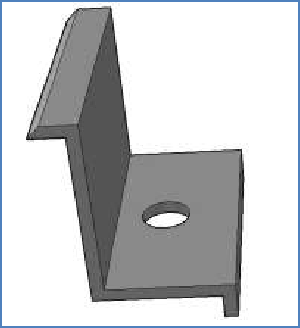

END CLAMP
PRECAST FOUNDATION

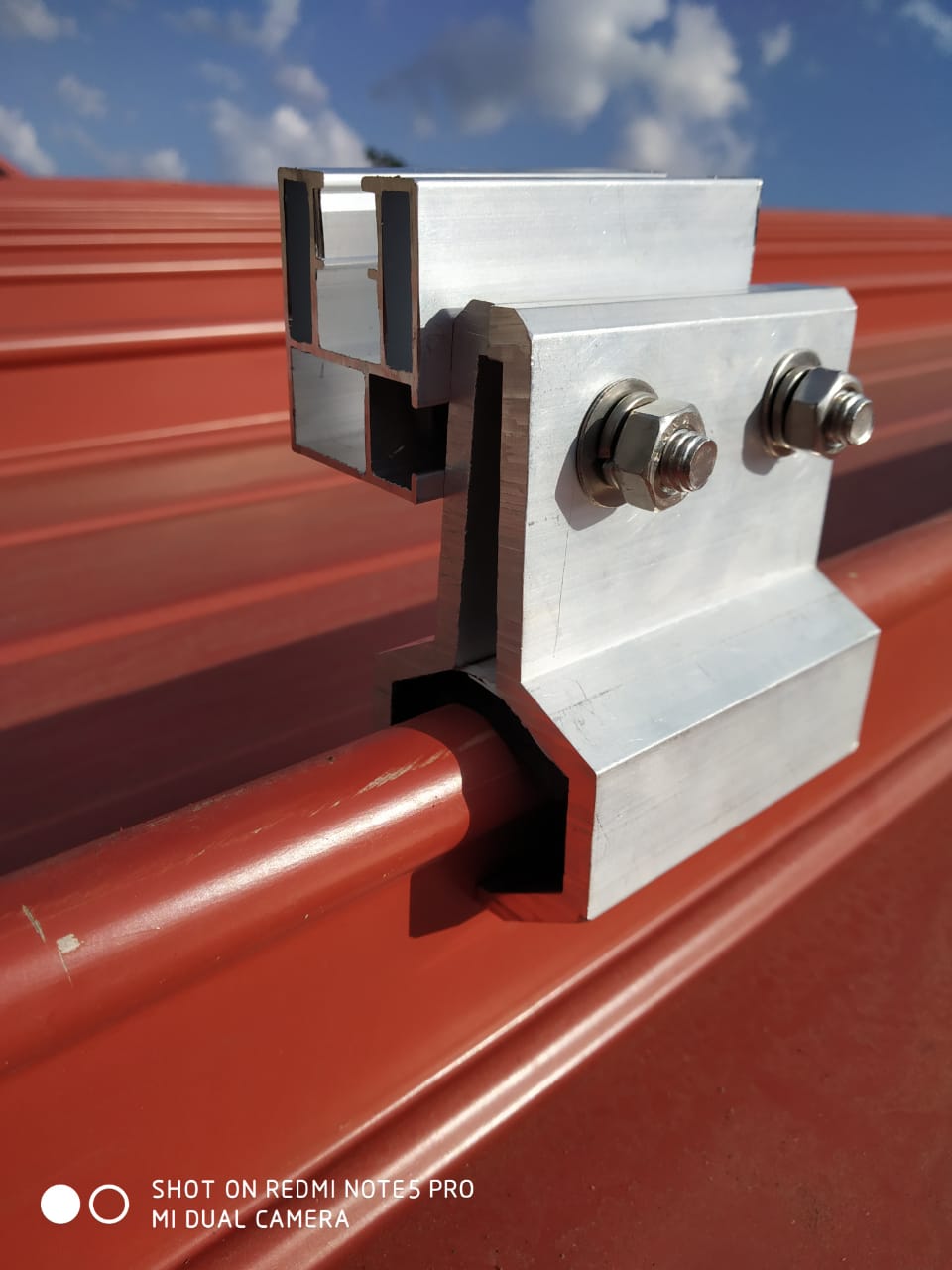

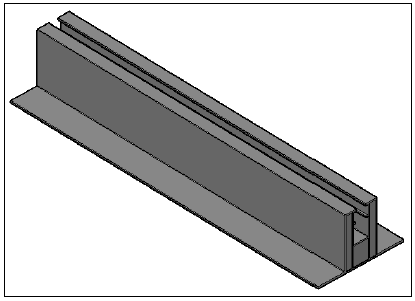

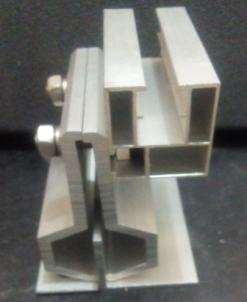

STANDING SEAM MOUNT
SHORT RAIL-50

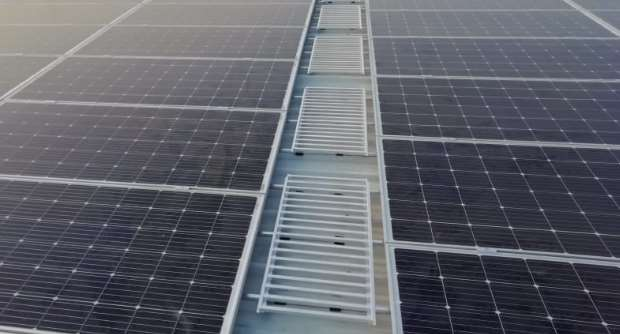

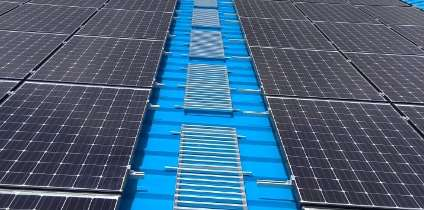

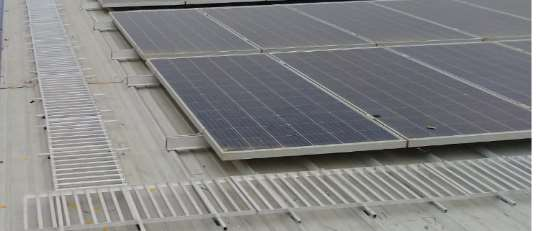

Walk ways on sheet roof:
Features:
- Standard walkways of 400mmW X 1000mmL Load capacity 150 kg/m2.
- Can be installed in both landscape & Portrait orientatiuon.
- Sheet mounted using Rivets.
- MOC of structure: Aluminium alloy, as per IS-733-Grade-63400-WP (6063T6)

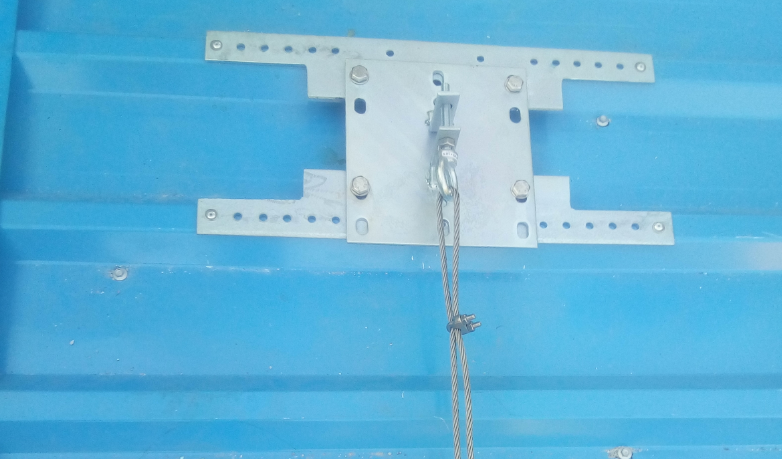

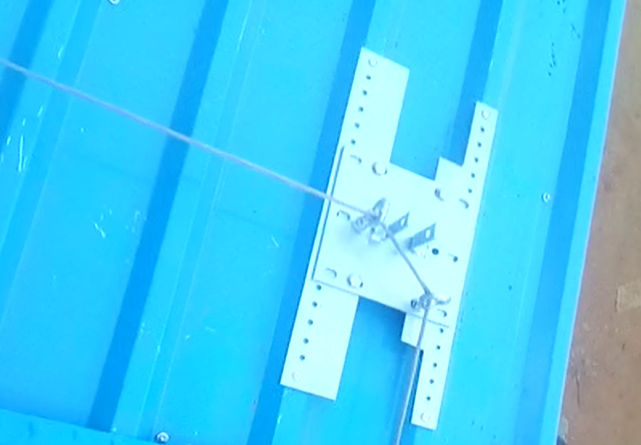

Life line on sheet roof:
Features:
- Life line for sheet roof top as safety requirement.
- SS wire rope of suitable size.
- Fixing plates MS+HDG of suitable thickness.
- Easy to fix using rivets on sheet roof & suitable for site requirement
